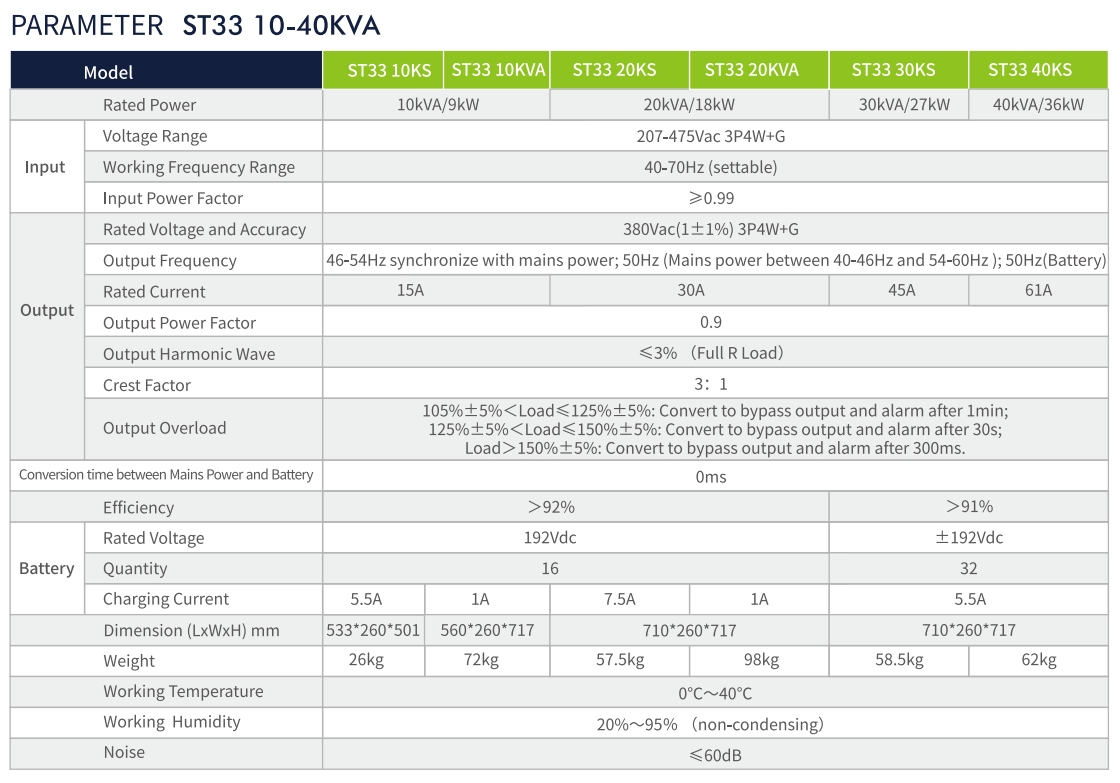

PRODUCT SPECIFICATION ADVANCED POINTS
- Largeinput voltage range: fullload: 275Vac-475Vac;no-load:207Vac-475Vac
- Large input frequency range: The Ups can work in mains INV mode ifthe input ranges from 40 to 70Hz3
- High output accuracy:±1% output voltage error
PRODUCT FEATURES
- High-frequency onine three-in and three-out Ups, the output can be conmected to unbalanced load, and the input three-phase alwavs keeps the load balanced
- Fully digital control,more stable performance.
- Energy-saved and environmental protection, efficiency is up to 93%
- Support N+X parallel redundancy

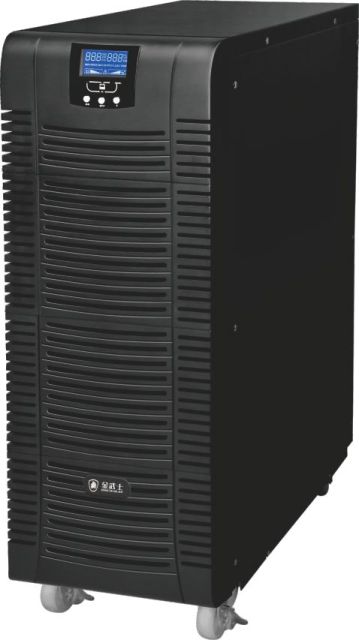

- The most optimized tower structure design has the smallest volume compared to similar products on the market
- A single set of battery supplies power to the system, reducing the number of batteries and save cost.
- 10-20K standard machine integrated design with battery built-in, easy to install and use.
- Visualized LCD display interface, clear and intuitive display of three-phase working information.
- Intelligent mobile monitoring cards are supported to monitor Ups data in real time through mobile apps.
