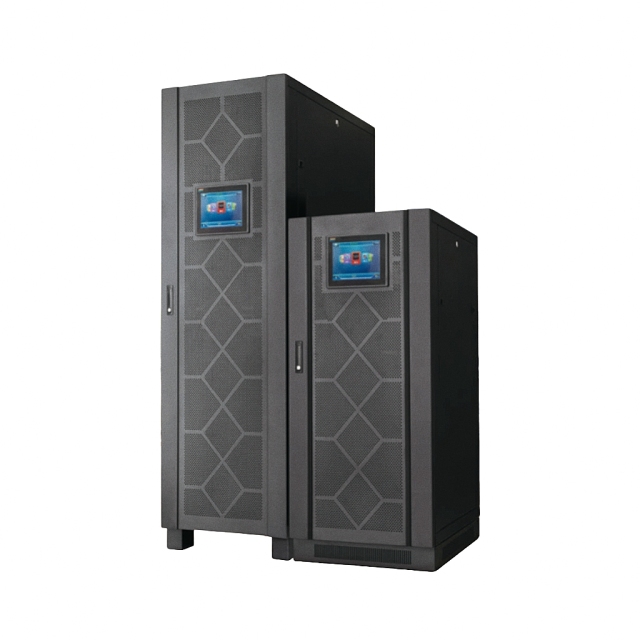

| UPS cabinet |
30-150KVA |
30-300KVA |
| Power Module |
30KV/A |
| Input Form |
3P4W+G |
| Rated Voltage |
380/400/415Vac |
| Voltage Range |
280-478Vac |
| Frequency Range |
40-70Hz |
| Input Power Factor |
≥0.99 |
| Bypass Range |
380 upper limit: 20% (optional +10%, +15%, +20%)
400 upper limit: 20% (optional +10%, +15%)
415 upper limit: 20% (optional +10%, +15%)
Lower limit: 20% (optional -20%, -30%)
Bypass frequency protection range: ±3Hz |
| Input Current Harmonic Wave |
≤6% (100% non-linear) |
| Output Form |
3P4W+G |
| Rated Voltage |
380/400/415Vac |
| Output Power Factor |
0.9 or 1 |
| Voltage Accuracy |
±1% |
| Output Frequency - Mains Mode |
Synchronization with input, when mains frequency exceeds maximum value ±10%, (can be set ±1%, ±2%, ±3%, ±5%) Output frequency 50Hz(±0.2Hz) |
| Output Frequency - Battery Mode |
(50/60±0.2) Hz |
| Conversion Time |
Mains mode → bypass mode: 0ms (tracking)
Mains mode → battery mode: 0ms |
| Overload Capacity |
Load<110%: 60 mins; Load<120%: 10mins; Load<150%: 1min; Load>150%: shutdown immediately |
Load<110%: 60 mins; Load<120%: 10mins; Load<150%: 1min; Load>150%: shutdown immediately |
| Output Voltage Harmonic Wave |
≤ 2% (100% linear)
≤ nominal load 5% |
≤ 2% (100% linear)
≤ nominal load 5% |
| Communication Port |
RS232, RS485, Intelligent Slot (Dry contact port) |
RS232, RS485, Intelligent Slot (Dry contact port) |
| Battery Voltage |
±192VDC (±230VAC) (±234/240/384/400pcs battery to select) |
±192VDC (±230VAC) (±234/240/384/400pcs battery to select) |
| Charging Current - UPS Cabinet |
50A Max |
100A Max |
| Charging Current - Module |
10A Max |
| Operating Temperature |
0-40℃ |
| Relative Humidity |
0-95% (non-condensing) |
| Storage Temperature |
-25-55℃ (excluded battery) |
| Altitude |
<1500m (derating if exceeding 1500m) |
| Outer Dimension (L×W×H) - Cabinet |
848×453×131 |
1100×800×2000 |
| Outer Dimension (L×W×H) - Module |
178 |
| Net Weight - Cabinet |
178 |
305 |
| Net Weight - Module |
306 module: 33.5kgs |
| Operative Standard |
YDT 1265-2010 |
