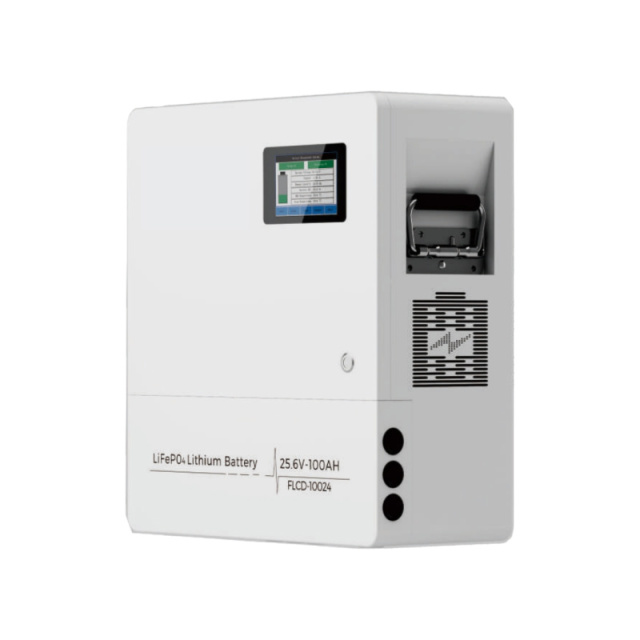

Name: LiFePO4 Lithium Battery
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

Better Cycle Life: Provides up to 15 times the cycle life and 5 times longer floating/storage life than lead-acid batteries
Lighter weight: about 40% of the weight of an equivalent capacity lead-acid battery, saving up to 60% of the weight
Fast charging: Short charging time compared to lead-acid batteries
Low self-discharge: Compared to lead-acid batteries, the self-discharge is lower and can be stored longer without recharging
Superior safety: Built-in multiple protection methods to protect the battery from overcharge, overdischarge, and short-circuit conditions
High efficiency: The average round-trip efficiency (92%) is higher than that of lead-acid batteries (80%) (from 100% discharge to 0% and recharge to 100%)

Office and Public Facilities, Household Appliances, Network Transmission Equipment, Manufacturing, Control System, Solar Energy System, Oil Field, Drilling Field Operation etc.
Provide Stable, Reliable and Safe Power Solutions for Families, Islands, Ships and Other Small Photovoltaic Power Systems

Model		LB25.6-100	LB25.6-200	LB25.6-400	LB51.2-100	LB51.2-200	LB51.2-300
Electrical Parameters (25℃)	Rated Voltage	25.6V	25.6V	25.6V	51.2V	51.2V	51.2V
	Rated Capacity (C5)	100Ah@25℃	200Ah@25℃	400Ah@25℃	100Ah@25℃	200Ah@25℃	300Ah@25℃
	Energy	2560Wh	5120Wh	10240Wh	5120Wh	10240Wh	15360Wh
	Monthly Self-Discharge	<3%
	Charge Efficiency	99.5%@0.2C
	Discharge Efficiency	97-99%@1C			96-99%@1C
Terminal Diameter		M10			M8
Internal Resistance (Fully Charged, 25℃)		≤10mΩ			≤200mΩ
Cycle LIfe		>3000 cycle @0.2C 100%D.O.D
Capacity affected by temperature	40℃	101%
	45℃	100%
	0℃	90%
	-10℃	75%
Nominal operating temperature		25℃±5℃ (77℉±9℉)
Operating temperature range	Charge	-20℃~60℃ (-4℉~140℉)
	Discharge	0℃~65℃ (32℉~149℉)
	Storage	0℃~40℃ (32℉~104℉)
Water Dust Resistance		IP50
Charge Cut Voltage		29.2V			58.4V
Standard Charge Mode (25℃±2℃, ≤75%RH)		0.2CA Constant Current to 58.4V, then the current drops to 0.02CA, switch to 58.4V Constant voltage
Maximum Charge Current		20A	40A	80A	20A	40A	60A
Maximum Discharge Current		50A	100A	200A	50A	100A	150A
Charge Cutoff Voltage		29.2V			59.2V
Continuous Discharge Current		100A	200A		100A
Maximum Pulse Current		150A (≤2s)	250A (≤3s)		150A (≤3s)
Discharge Cutoff Voltage		22.4V			44.8V
Communication Protocol (optional)		(Default none) RS485/RS232/CAN			RS485/RS232/CAN
SOC (optional)		(Default none) Bluetooth			Screen/LED/PC Software
Application connection		1 string 1 parallel
Mechanical	Cells	8 Strings			16 Strings
	Container	Metal

LiFePO4 Lithium Battery

Description
