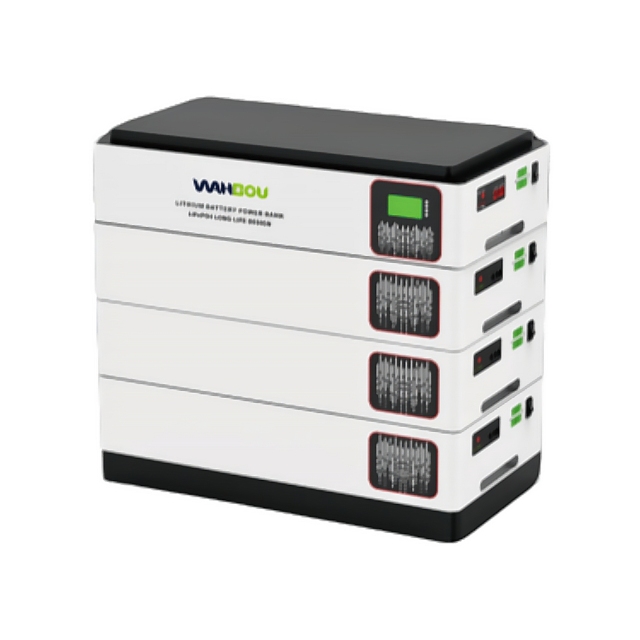

Name: High Voltage Modular & stacked Lithium Battery 10KWH-50KWH 6000 Cycles Cells
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

Description

Key Features

Top brand new LiFePO4 cells, super safety.
Modular&stacked design for easy extension.
All around protection and unattended operation.
5 Years warranty, 6000+ cycles, 10+ years life design.
100A smart BMS for each modular, matches well with solar system.
High voltage stack with central BMS, compatible with SUNIN 8K-12K inverter.
Internal battery temperature reaches 1000°C within 10mins, the cover remains at normal temperature

Model	WB-10.20KWh	WB-15.30KWh	WB-20.40KWh	WB-25.50KWh	WB-30.70KWh	WB-35.80KWh	WB-40.90KWh	WB-45.00KWh	WB-51.20KWh
Battery cell type	LiFePO4
Battery Module	51.2V/100Ah
No. of Module	2	3	4	5	6	7	8	9	10
Normal Capacity(25℃,0.2C)	10.24KWh	15.36KWh	20.48KWh	25.6KWh	30.72KWh	35.84KWh	40.96KWh	46.08KWh	51.2KWh
Normal Voltage (dc)	102.4V	153.6V	204.8V	256.0V	307.2V	358.4V	409.6V	460.8V	512.0V
Voltage window (dc)	89.6-116.8V	134.4-175.2V	179.2-230.4V	224.0-282.0V	268.8-336.0V	313.6-403.8V	358.4-467.2V	403.2-524.8V	448.0-584.0V
Dimension(MM) (WHD)	703490611	703490803	703490995	7034901187	7034901379	7034901571	7034901763	7034901955	7034902147
Weight(Net) Kg	132Kg	172Kg	221Kg	266Kg	315Kg	368Kg	417Kg	466Kg	515Kg
Normal charge/ discharge current	50A
Max charge/ discharge current	100A
Cycle life (+25℃ 0.2C 90%DOD)	6000
Terminal	Double M8
Storage temperature	0℃-30℃
Storage duration	6 months at 25℃
Safety standard	UN38.3,MSDS,EC62619,EN62619,EN61000
IP degree	IP54
Communication function	RS485,CAN
PROTECTION
Protection	Over charge protection, Over discharge protection, Over current protection, Shortcircuit protection, Over temperature protection
AMBIENT
Working Temperature	-10℃-+50℃
Humidity	0-95% (no condensation)
