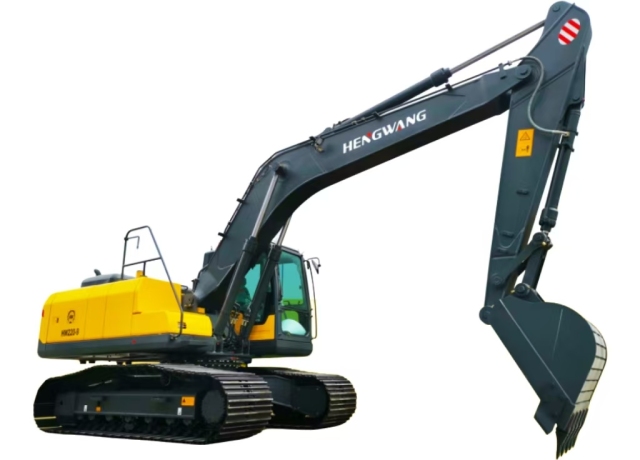

Excavator HW220-9 brochure

Name: Excavator HW220-9 brochure
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

ENGINE: Cummins 6BTAA5.9
Gross Power: 133KW/2000rpm
Operating Weight: 21.2ton
Bucket Capacity: 1.0cbm

Get A Quote

Description

CHECK-AROUND

The HW220 excavator provides all the elements to give you the lowest cost to own and operate. At the end of the day, it all comes down to how much work you got done and how much did it cost you. HW220 offer you the tools to help lower your owning and operating costs.

STRONG AND SPACIOUS CAB

Adopts integral framework structure and one-piece stamp forming, which is safe and reliable

"X" FRAME UNDERCARRIAGE

"X" frame undercarriage contributes to stability during complex excavation.

ENGINE
- Model: CUMMINS 6BTAA5.9
- Type: Inter-cooled
- No. of cylinder: 6
- Emission Regulation: Tier 2 / Stage Ⅲ
- Displacement: 5.9L
- Power output: 133KW/2000rpm

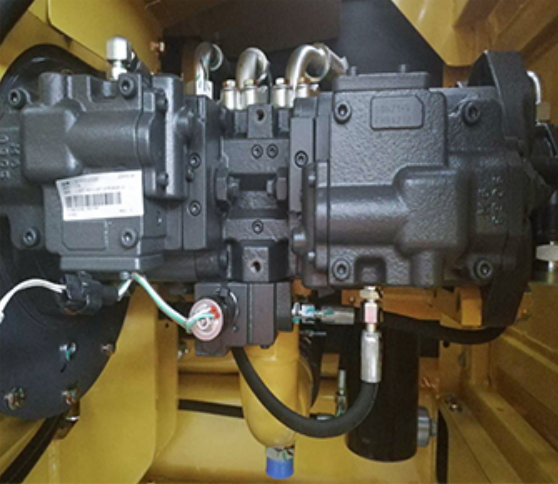

HYDRAULIC SYSTEM
- Type: Negative flow control
- Max. discharge flow: 2×228L/min

DIGGING FORCE (ISO6015)
- Bucket digging force: 145KN
- Arm digging force: 112KN

BUCKET
- Type: Backhoe Bucket
- Bucket capacity: 1.0M³
- Bucket width: 1.2M

TRAVEL SYSTEM
- Type: Hydraulic Motor
- Support roller quantities: 2×7
- Carrier roller quantities: 2×2
- Travel shoes: 2×45
- Travel speed: 5.2/3.5KM/H
- Drawbar pulling force: 196KN
- Grade ability: 70%(35°)

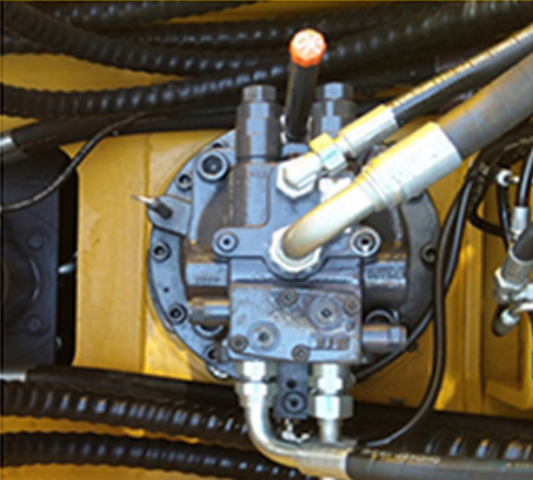

SWING SYSTEM
- Swing motor type: Plunger Motor
- Swing speed: 11.5r/min
- Brake type: Hydraulic Motor

REFILLING CAPACITIES & LUBRICATIONS
- Fuel tank: 350L
- Cooling system: 28L
- Engine oil: 20L
- Hydraulic oil tank: 246L
- System Capacity: 400L

OPERATING WEIGHT AND GROUND PRESSURE
- Shoe width: 600mm/800mm
- Ground pressure: 46.5KPA
- Operating weight: 21200KGS

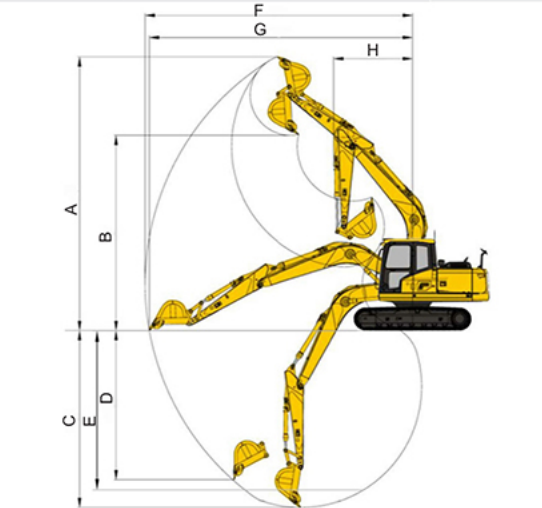

SCOPE OF WORK (MM)
A Max. digging height	9275
B Max. dumping height	6560
C Max. digging depth	6515
D Max. vertical digging depth	5915
E Max. Depth cut for 2500mm Level Bottom	6320
F Max. digging distance	9865
G Max. digging radius at ground level	9880
H Min. swing radius of work equipment	3630

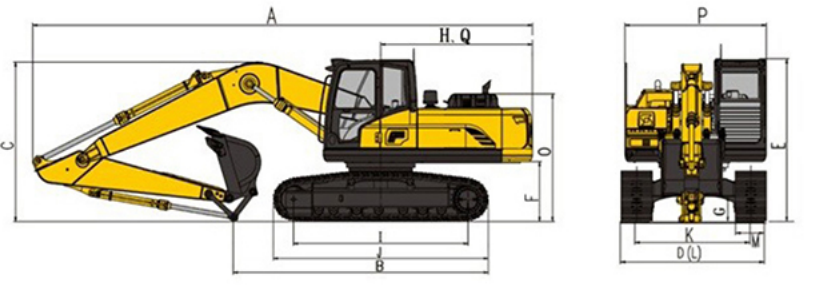

DIMENSIONS (MM)
A	Overall length	9390
B	Ground contact length (Transportation)	3260
C	Overall height(to top of boom)	3040
D	Overall width	2780
E	Overall height(to top of cab)	3120
F	Counter weight ground clearance	1065
G	Ground clearance	466
H	Tail swing radius	2720
I	Tread	3655
J	Track length	4460
K	Track gauge	2180
L	Track width	2780
M	Shoe width	600
O	Bonnet height	2375
P	Revolving frame width	2725
Q	Distance from swivel center to tail	2720

SHOW DETAILS

Great all around visibility and exceptional operator comfort New injection molding interior, simple and morden design. Suspended seat,provides excellent comfort. The cab shell is attached to the frame with viscous rubber cab mounts, which dampen vibrations and sound levels while enhancing operator comfort.
