| Parameters and performance of the main machine | ||
|---|---|---|
| Weight of main machine | t | 20.5 |
| Straight shovel bucket capacity | m³ | 1 |
| Digging force of bucket | kN | 155 |
| Digging force of arm | kN | 115 |
| Max. traction | kN | 232 |
| Traveling speed(km/h) | km/h | 5.0/3.2 |
| Gradeability | ° | 35 |
| Ground pressure | kPa | 46.4 |
| Slewing speed | rpm | 11 |
| Engine |
Brand | FAW |
| Model | BF6M | |
| Type | 4-stroke water cooling turbocharging | |
| Displacement (L) | 6.06 | |
| Power/rpm (kw/rpm) | 125/2200 | |
Fuel tank capacity |
345 | |
| Primary pump |
Type | 2-piston variable pump |
| Flow rate (L/min) | 2x205 | |
| Pressure of travel valve | Mpa | 31.4/34.3 |
| Hydraulic oil tank capacity | L | 280 |

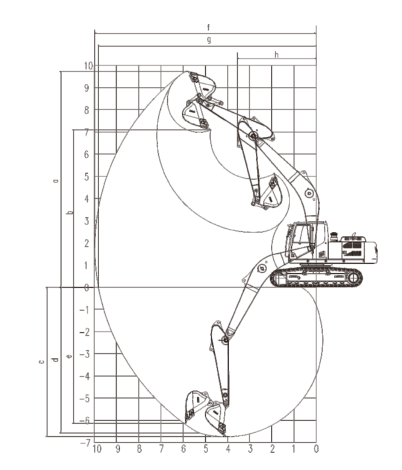

| Working range | ||
|---|---|---|
| Boom length | mm | 5700 |
| Arm length | mm | 2600 |
| a Max. digging height | mm | 9485 |
| b Max. dumping height | mm | 6760 |
| c Max. digging depth | mm | 6320 |
| d Digging depth (2.44m horizontal) | mm | 5965 |
| e Max. vertical digging depth | mm | 5780 |
| f Max. digging radius | mm | 9580 |
| g Max. digging reach at ground level | mm | 9400 |
| h Min. front slewing radius | mm | 3615 |

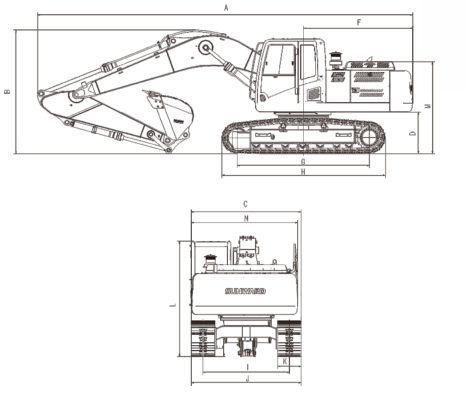

| Outline dimension | |||||
|---|---|---|---|---|---|
| A Total length | mm | 9565 | H Total track length | mm | 4175 |
| B Total height | mm | 3150 | I Track distance | mm | 2200 |
| C Total width | mm | 2800 | J Track width | mm | 2800 |
| D Ground clearance of platform | mm | 1070 | K Width of track link | mm | 600 |
| E Chassis ground clearance | mm | 480 | L Cab roof height | mm | 2945 |
| F Platform tail slewing radius | mm | 2790 | N Upper-structure width | mm | 2710 |
