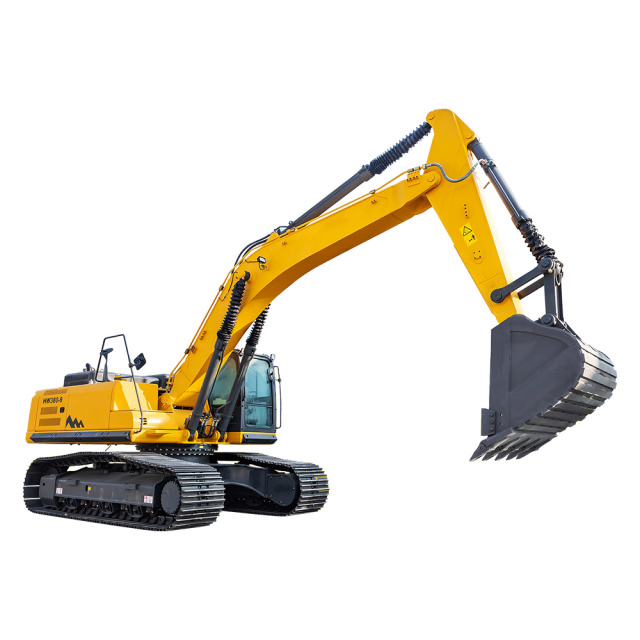

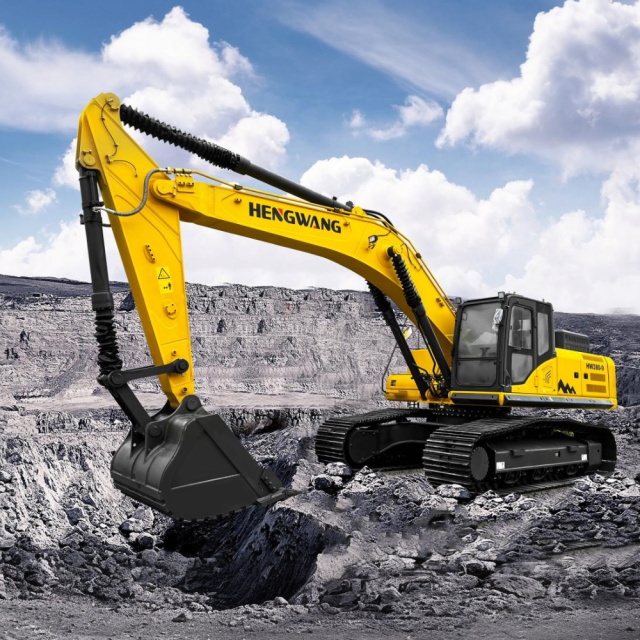

CRAWIER EXCAVATOR-HW380-9

CHECK-AROUND
The HW380-9 excavator provides all the elements to give you the lowest cost to own and operate, At the end of the dav, it al comes down to how much work you got done and how much did it cost you. HW380-9 offers you the tools to help lower your owning and operating costs.

REINFORCED STRUCTURE PARTS
Fully optimize the design of structural parts, strengthen the key stress points, and no fear of any tough works.
Multiple specification for arm, boom, and bucket combination,suitable for all kinds of working conditions.

STRONG AND SPACIOUS CAB
Adopts integral framework structure and one-piecestamp forming, which is safe and reliable

POWERFUL TIER I ENGINE
Equipped with 212KW lsuzu 6KHIX engine·
Tier 3 emission, high efficiency and durability;
High altitude adaptability, providing stablepower output.
Three stage fuel filter provides excellent water removal over the life of the filter

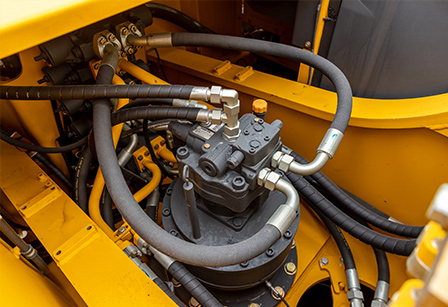

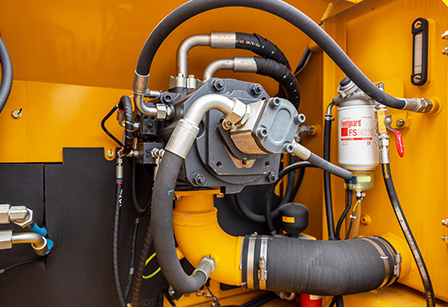

RELIABLE HYDRAULC SYSTEM
Multi-pump hydraulic system, high-end and , energy loss.
Provide reliability and outstanding controllability.



Specifications

ENGINE

• Model: Isuzu 6KHIX
• Type: High pressure common rail, super-charged
• Number of Cylinders: 6x115x125
• Emission Regulation: Tier 3 / Stage III
• Displacement: 7.79L
• Power Output: 212kW @ 2000rpm

HYDRAULIC SYSTEM

• Type of Hydraulic Pump: 2 variable piston pumps + 1 gear pump
•  Max. Discharge Flow: 660L/min (2x330L/min)

DIGGING FORCE

• Bucket Digging Force: 230KN
• Arm Digging Force: 190KN

BUCKET

• Bucket Type: Backhoe Bucket
• Bucket Capacity: 1.8M³
• Bucket Width: 1.571M

TRAVEL SYSTEM

• Travel Motor: Axial variable plunger motor
• Quantity of Travel Shoes: 2X49
• Travel Speed: 5.0/3.0KM/H
• Drawbar Pulling force: 280KN
• Grade Ability: 70% (35°)
• Support Roller Quantities: 2x8
• Carrier Roller Quantities: 2x2

SWING SYSTEM

• Swing Motor Type: Plunger Motor
• Swing Speed: 9.7r/min
• Brake Type: Pressure release mechanical braking

REFILLING CAPACITIES & LUBRICATIONS

• Fuel Tank Capacity: 580L
