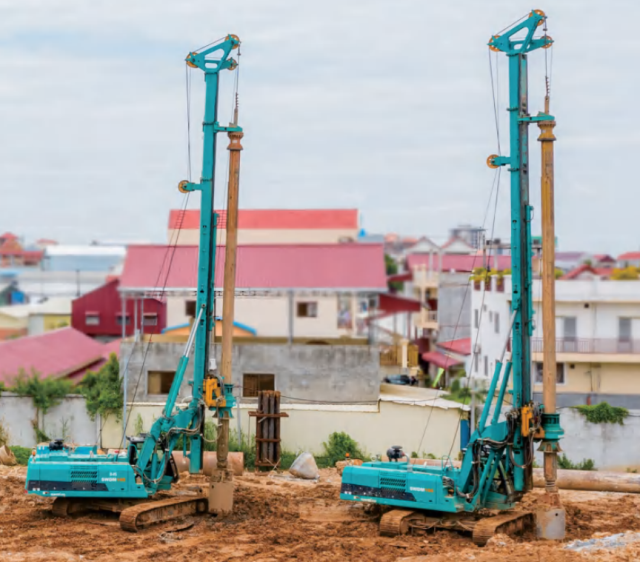

160H2

Get A Quote
  • 160H2

Description

Comprehensive Technical Parameters
Parameters Model  SWDM160H2
Drill hole Max. pile diameter mm 1500
Max. pile depth m 56/44
Engine Brand Cummins
Model QSB6.7-C260
Rated Power kW@rpm 194@2200
Rotary head Maximum torque kN·m 168
Rotor speed rpm 6-42
High speed soil throwing (optional) rpm 70
Main winch Maximum lifting force kN 165
Maximum lifting speed m/min 80
Wire rope diameter mm 28
Crowd system Max. crowd force kN 150
Maximum lifting force kN 160
Maximum stroke mm 4000
Auxiliary winch Maximum lifting force kN 50
Maximum lifting speed m/min 50
Wire rope diameter mm 16
Drilling mast Lateral inclination ° ±4
Front and rear inclination ° 4/90
Chassis Track width mm 700
Telescopic width of track mm 2980-3980
Chassis length mm 4645
Whole machine Working height mm 18285
Operating weight t 49



  • The only complete vehicle with drill pipe in the world can realize the single-layer arrangement of steel wire rope under full drilling depth, enabling convenient and fast transition transportation and allowing the service life of steel wire rope to be increased by 50%.
  • The high-power high-pressure common rail engine is adopted, with sufficient power reserve.
  • The rotary head has a high torque and strong construction capacity, with the rotating speed up to 42 rpm and soil casting efficiency increased by 15%.rpm and soil casting efficiency increased by 15%.
  • Featuring large lifting force and fast lifting speed, the main winch is equipped with one-key soil shaking function to save auxiliary drilling time and ensure high construction efficiency.
  • Concealed auxiliary outriggers at the bottom of the mast can assist in the placement of the hole casing and facilitate the maintenance of the chassis.
  • There is a special heavy-load telescopic track chassis and a luffing mechanism of the reinforced double-boom cylinder, with reliable and stronger diagonosis capacity.
  • Fault self-diagnosis alarm, real-time display of control parameters, and dedicated one-key locking of the electromagnetic handle save worry and efforts of operation; Sunward Cloud mobile APP realizes synchronous transmission of construction data and real-time monitoring of equipment status; multi-stop surveillance cameras, audible and visual alarms, and emergency stop buttons guarantee construction safety.
  • It can be equipped with the industry's pioneering wireless remote control device to realize remote control traveling, luffing, and other functions. Under special working conditions, it is placed "outdoors", so the field of vision is wider to ensure safety.
  • This model won the Gold Award for Market Performance of the top 50 china construction machinery annual products in 2021.



Drill pipe parameters

Model Drill pipe specification Drilling depth (m) Drill pipe weight (kg) Configuration Model Drill pipe specification Drilling depth (m) Drill pipe weight (kg) Configuration
SWDM160H2 Friction kelly377-5X12.1m 56 7400 Standard SWDM160H2 Locking kelly377-4X12.1m 44 7400 ○
SWDM160H2 Friction kelly377-5X10m 45 6327 ○ SWDM160H2 Locking kelly377-4X10m 35 6270 ○
SWDM160H2 Friction kelly377-5X8m 35 5305 ○ SWDM160H2 Locking kelly377-4X8m 27 5193 ○

○ Optional
